MINI Sensor Switch Series
Embedded, slotted 12mm
* Max 5A output current. Max 60W output power
* Its quality is consistent, highly sensitive, and very little affected by environmental temperature.
* Widely used in closet, wardrobe, wine cabinet and other cabinet lighting control.
Product Certification
Product Parameters
Product | Product Model | Input Voltage | Load LED power | Power line | Concealed hole size | Sensing distance | Working method | Warranty |

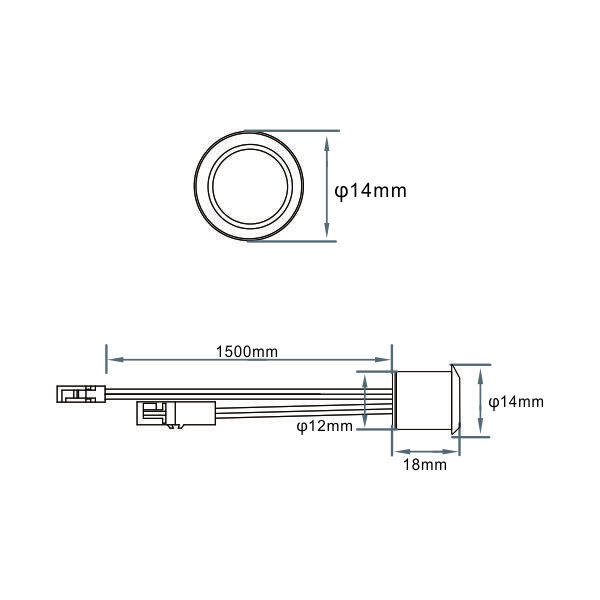

Single Door Control | MR-5028MINI-M | 12V | ≤60W | 1.5M | φ12mm*18mm | 0-80mm | The door opening light is on, the door closing light is off | 3 years |
24V | ||||||||
Double Door Sensor | MR-5028S2MINI | 12V | 1.5M | φ12mm*18mm | 0-80mm | Brightness fades up as the door opens; it turns off only when both doors are closed | ||
24V | ||||||||
Hand Sensor | MR-5028MINI-T | 12V | 1.5M | φ12mm*18mm | 0-80mm | Wave hand to turn light on; wave again to turn it of | ||
24V | ||||||||
PIR(body) Sensor | MR-2020MINI | 12V | 1.5M | φ12mm*18mm | 0-3M | When people come, the light will turn on; when people leave, the light will turn off | ||
24V | ||||||||
Touch Sensor | MR-9028MINI | 12V | 1.5M | φ12mm*18mm | Touch | Touch dimming, short touch light on/off, long touch cycle stepless dimming | ||
24V |
