Detachable Wired sensor Smart Sensor Switch

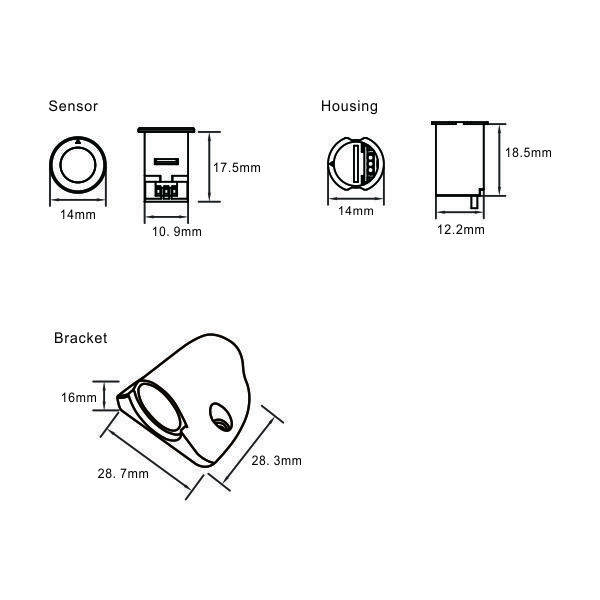

Detachable, slotted 12.2mm
* The sensor probe is replaceable
* Imported IC, stable quality, strong anti‑interference
* Stable performance, high sensitivity, little affected by ambient temperature.
* Widely applied for lighting control of cabinets, wardrobes, wine cabinets and other cabinet units.
Product Certification
Product Parameters
Product | Product Model | Input Voltage | Control mode | Power line | Concealed hole size | Sensing distance | Working method | Warranty |
Single Door Control | MR-5038M | 12V | Master Control | 1.5M | φ12.2mm*18.5mm | 0-80mm | The door opening light is on, the door closing light is off | 3 years |
24V | ||||||||
Double Door Sensor | MR-5038S2M | 12V | Master Control | 1.5M | φ12.2mm*18.5mm | 0-80mm | Brightness fades up as the door opens; it turns off only when both doors are closed | |
24V | ||||||||
Hand Sensor | MR-5038T | 12V | Master Control | 1.5M | φ12.2mm*18.5mm | 0-80mm | Wave hand to turn light on; wave again to turn it of | |
24V | ||||||||
Pir(body) Sensor | MR-2023 | 12V | Master Control | 1.5M | φ12.2mm*18.5mm | 0-3M | When people come, the light will turn on; when people leave, the light will turn off | |
24V | ||||||||
Touch Sensor | MR-2026TS | 12V | Master Control | 1.5M | φ12.2mm*18.5mm | Touch | Touch dimming, short touch light on/off, long touch cycle stepless dimming | |
24V |
