2.4G Wireless Single/Dual Color Temperature Sensor
* Low power consumption with up to 5 years of battery life.
* High sensitivity with minimal environmental interference.
* Stable performance with long detection distance.
* Compact size and easy installation.
* Suitable for controlling various constant-voltage LED lighting fixtures.
* Widely used for LED strip lighting in cabinets, wardrobes, wine cabinets, and other furniturelighting systems.
Product Certification
Product Parameters

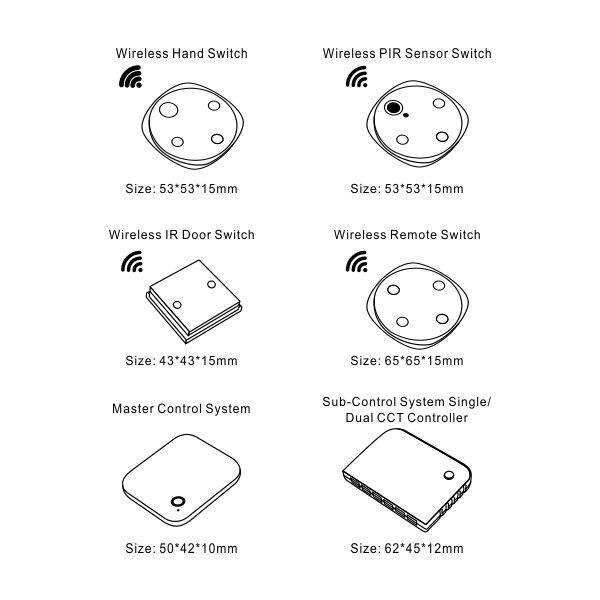

Product Name | Product Model | Control mode | Battery Information | Size | Detecting Mode | Operation | Warranty |
Wireless Remote Switch | MR-4010-K | 2.4GHz wireless | CR2405 | 65*65*15mm | Click/Long Press | Single click: ON / OFF Press and hold: Stepless dimming / color tuning | 3 years |
Wireless IR Door Switch | MR-4010-M | 2.4GHz wireless | CR2405 | 43*43*15mm | Click/Long Press | Single click: ON / OFF Press and hold: Stepless dimming / color tuning | 3 years |
Wireless PIR Sensor Switch | MR-4010-PIR | 2.4GHz wireless | CR2405 | 53*53*15mm | Human body sensing+buttons | Light turns on automatically when motion is detected Light turns off after a 35-second delay when no motion is detected. Press and hold for stepless dimming / color tuning | 3 years |
Wireless handwave switch | MR-4010-T | 2.4GHz wireless | CR2405 | 53*53*15mm | Hand Wave / Click/Long Press | Wave to turn on. Wave again toturn off. Press and hold for stepless dimming / color tuning. | 3 years |
Product Name | Product Model | Control mode | Input/Output Voltage | Size | Max Load | Receiving distance | Power cord length |
Master Control System | MR-3020-BJ | Master Control | DC 12V/ 24V | 50*42*10mm | Decided by led driver | 10M | 50mm |
Sub-Control System Single/ | Single MR-3022 | Sub-Control | DC 12V/ 24V | 62*45*12mm | MR-3022:120W | 10M | 100mm |
