Flexible LED Light Sheet
Backlight board single color WW CW NW 24V 15W 105LEDs Free Cut
MR-CM283524503235L
* Thin and lightweight design.
* LED beads with lenses
* Each LED features designated cutting marks, allowing flexible cutting and shaping to fit various applications.
* Ideal for ultra-slim lighting solutions and space-constrained backlighting applications.
* 3M Adhesive
* IP Rating IP20
Product Certification
Product Parameters

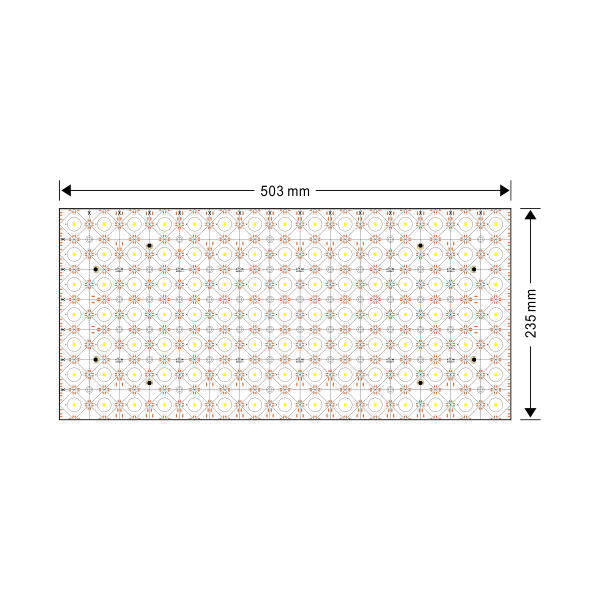

Product Model | Input Voltage | Power | LED Type | LED | Cuttable Size | CCT | Lumen/PCS | CRI | Beam Angle | IP Rating | Product Size |
MR-CM283524503235L-WW | 24V | 15W/PCS | SMD 2835 | 105 LEDs/PCS | 1LED, | 3000K | 1866 lm/PCS | Ra＞80 | 160° | IP20 | 503*235mm |
MR-CM283524503235L-CW | 6500K | 1932 lm/PCS |
