Layer Board

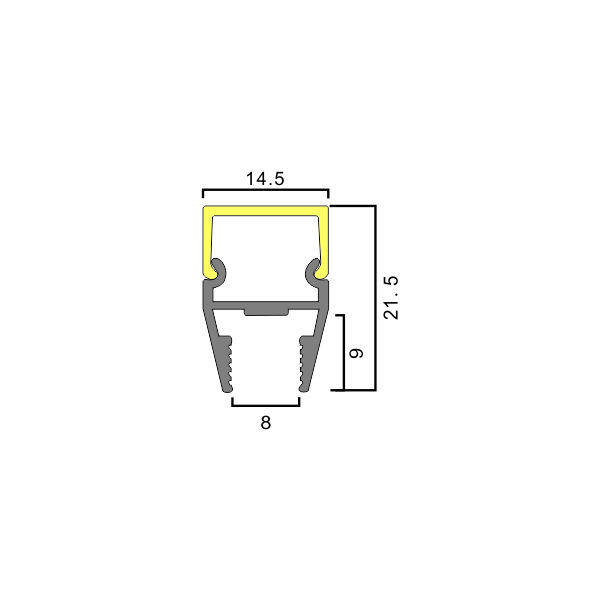

Glass shelf light Sandwiched with 8mm thick glass PC cover
0822X

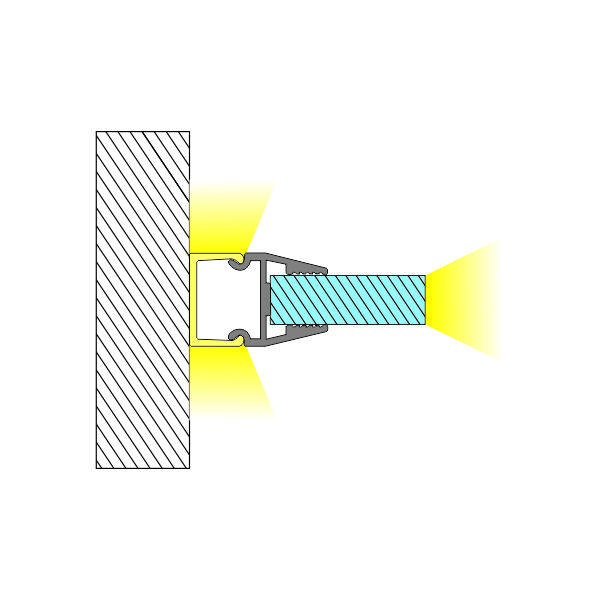

* Installation of light strips behind the layer board, the size of the strip needs to be reserved in advance
* Commonly suitable for 8mm thickness glass laminate
* PC lampshade for more uniform illumination
* Thickened aluminum profiles for better heat dissipation
* Housing color: Iron Gray, Silver, Black
Product Certification
Product Parameters
Product model | Input Voltage | Power | LED Type | LED Qty | Cuttable Size | CCT | Lumen/M | CRI | Beam Angle | IP Rating | Max Length |
MR-AL2835120822X | 12V | 4.8W/M | SMD 2835 | 120LEDs/M | 3LED, 25mm | 3000K | 240 lm/m | Ra＞90 | 120° | IP20 | 3M/PCS |
4000K | |||||||||||
6000K | |||||||||||
CCT | |||||||||||
MR-AL2835240822X | 24V | 6W/M | 6LED, 50mm | 3000K | 300 lm/m | ||||||
4000K | |||||||||||
6000K | |||||||||||
CCT |
